High-Frequency PCBs in Automotive Electronics
As the automotive industry continues to evolve, so too does the complexity of the electronics required to support the latest innovations. From electric vehicles (EVs) and autonomous driving systems to connected cars and advanced infotainment, the reliance on high-frequency printed circuit boards (PCBs) has never been greater. High-frequency PCBs, which can efficiently handle signals in the microwave or millimeter-wave frequency range, have become the backbone of modern automotive electronics.
This article will explore in depth the vital applications of high-frequency PCBs in the automotive sector, explaining how they enable crucial functions like radar and LiDAR, vehicle-to-everything (V2X) communication, infotainment systems, and electric powertrains.
What Are High-Frequency PCBs?
High-frequency PCBs are specially designed to handle signals that operate at frequencies above 1 GHz, often extending into the millimeter-wave spectrum (up to 100 GHz). These frequencies are essential for applications such as radar systems, wireless communication, and advanced sensor networks that require high-speed data transmission with minimal signal loss and interference. High-frequency PCBs utilize specialized materials, such as PTFE (Polytetrafluoroethylene), Rogers material, or low dielectric constant substrates, to support signal integrity at these high frequencies.
In automotive electronics, the requirements for high-frequency PCBs are stringent. They must be able to operate reliably in harsh environments, endure temperature variations, and resist mechanical stress, all while maintaining impeccable performance.
1. Radar and LiDAR Systems: The Cornerstone of Autonomous Driving
One of the most prominent applications of high-frequency PCBs in the automotive industry is in radar and LiDAR systems, which are crucial for autonomous driving and advanced driver-assistance systems (ADAS). These technologies use electromagnetic waves to detect objects, calculate distances, and map surroundings, giving vehicles the ability to make real-time decisions based on the environment.
- Radar Systems: Automotive radar systems typically operate at frequencies such as 24 GHz or 77 GHz. At these high frequencies, radar sensors can detect the speed and position of nearby vehicles, pedestrians, or obstacles, even in adverse weather conditions. High-frequency PCBs ensure the radar system's accuracy and quick response time by reducing signal attenuation and maintaining consistent performance across varying temperature and humidity conditions. In ADAS, radar is critical for functions such as adaptive cruise control, emergency braking, and blind-spot monitoring. |
|
 | - LiDAR Systems: LiDAR (Light Detection and Ranging) uses laser pulses to generate 3D maps of the vehicle's surroundings. LiDAR is often used in combination with radar for fully autonomous vehicles, as it provides high-resolution imaging for close-range detection. The rapid transmission and processing of signals are made possible through high-frequency PCBs, which are integral in converting light signals into data that the vehicle's computer can interpret. Together, radar and LiDAR systems depend on the speed and reliability offered by high-frequency PCBs to ensure the accuracy and responsiveness of autonomous vehicle systems. Without this technology, the dream of self-driving cars would be far less feasible. |
2. V2X Communication: Enabling Smart, Connected Vehicles:

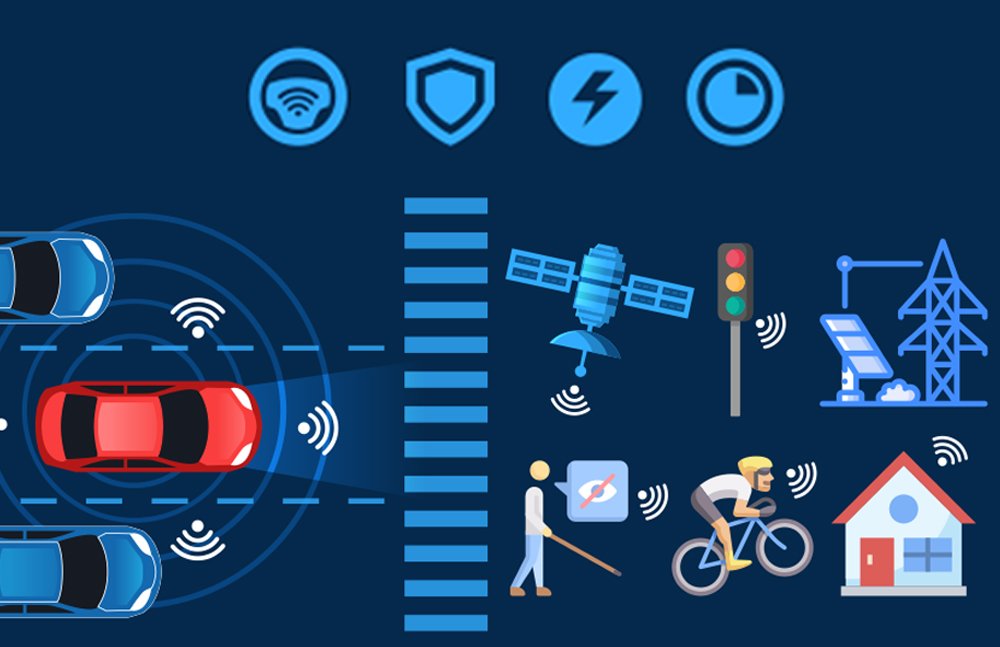

Another growing trend in automotive electronics is the adoption of Vehicle-to-Everything (V2X) communication, which allows vehicles to communicate with each other (Vehicle-to-Vehicle or V2V), the infrastructure (Vehicle-to-Infrastructure or V2I), pedestrians (Vehicle-to-Pedestrian or V2P), and the cloud. This technology plays a critical role in enhancing traffic safety, reducing congestion, and enabling the development of smart cities.
- V2V Communication: High-frequency PCBs support real-time data sharing between cars, enabling quick coordination for safe maneuvers like lane changes and emergency braking. - V2I Communication: Vehicles use high-frequency PCBs to interact with infrastructure like traffic lights, ensuring smooth traffic management and timely alerts about road conditions. - V2P Communication: High-frequency PCBs enable fast detection of pedestrians, enhancing safety in low-visibility conditions by maintaining reliable signal transmission. The role of high-frequency PCBs in V2X communication cannot be overstated. They provide the foundation for high-speed data transmission that allows vehicles to "talk" to their environment, which is essential for the safe and efficient operation of smart, connected vehicles. |
|
3. Infotainment and Connectivity: Creating Seamless In-Car Experiences
| Modern vehicles offer an array of entertainment and connectivity options, from infotainment systems to advanced navigation and internet access. High-frequency PCBs are critical in supporting the wireless communication technologies that power these systems, such as Bluetooth, Wi-Fi, and LTE. - Infotainment Systems: In-car infotainment systems have evolved into sophisticated multimedia centers that integrate with smartphones, provide real-time traffic data, and offer voice-activated controls. High-frequency PCBs ensure these systems can manage complex data streams without lag or interference. For example, high-frequency circuits enable the high-definition displays in vehicles to process and render graphics swiftly, providing an enhanced user experience. - Navigation and GPS: Navigation systems rely on high-frequency signals from satellites to provide accurate, real-time location data. High-frequency PCBs are essential in maintaining signal strength and processing data quickly, ensuring that drivers receive precise directions and updates on traffic conditions. - In-Car Wi-Fi and Connectivity: Passengers expect seamless internet connectivity while on the move. High-frequency PCBs facilitate the fast data processing required for in-car Wi-Fi, allowing passengers to stream media, access cloud-based services, or work remotely without interruptions. By enabling high-speed data transmission and reducing latency, high-frequency PCBs are a key component in delivering the convenience, entertainment, and connectivity that drivers and passengers expect in modern vehicles. |
4. Advanced Sensors: Real-Time Vehicle Monitoring
Modern vehicles rely on high-frequency PCBs for accurate signal transmission in sensors that track tire pressure, fuel levels, and environmental conditions.
- Proximity Sensors: High-frequency PCBs enable quick, real-time data processing for parking and obstacle detection.
- Engine & Performance Sensors: High-frequency PCBs help monitor critical systems, like engine performance, ensuring efficient operation and preventing issues.
- Environmental Sensors: These sensors use high-frequency PCBs for real-time data on weather and air quality, improving safety and comfort.
- Electric & Hybrid Powertrains: Boosting Energy Efficiency High-frequency PCBs are essential in electric and hybrid vehicles, enhancing energy management and battery performance.
- Battery Management Systems (BMS): High-frequency PCBs ensure fast, accurate monitoring of battery health and charge.
High-frequency PCBs improve sensor accuracy, energy efficiency, and overall vehicle performance in modern and electric vehicles.
The Future of Automotive Electronics Relies on High-Frequency PCBs
High-frequency PCBs have become a cornerstone of modern automotive electronics, enabling the development of advanced technologies that make vehicles smarter, safer, and more efficient. From radar and LiDAR systems that power autonomous driving to V2X communication and energy-efficient powertrains in electric vehicles, high-frequency PCBs are indispensable.
As the automotive industry continues to push the boundaries of innovation, the demand for high-frequency PCBs will grow, further cementing their role in the future of transportation. Automakers, engineers, and designers must continue to leverage the capabilities of these PCBs to deliver the next generation of vehicles that meet the evolving needs of consumers and the challenges of a connected, autonomous future.
